Part #: Barix-X8
Barix Part #: 2004.9044

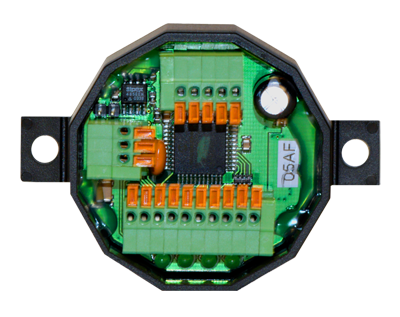

The X8 is a highly configurable slave Modbus I/O device that provides 8 independent I/O channels that can each be configured as a digital input, analog input (0-5V), or as a sinking or sourcing digital output (up to 20mA each or 85mA total when powered by 12VDC - see manual for details).

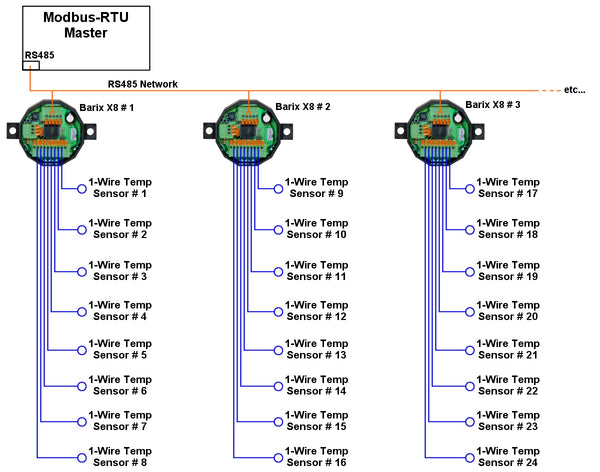

The X8 can also be used to read up to 8 Dallas 1-wire sensors for temperature monitoring or as a Wiegand -> RS485 gateway for Access Control applications.
The X8 can communicate with a higher level control system via ModbusRTU over RS485.
Monitor Applications:
- Wiegand Card Readers
- Switches
- Dry Contacts
- Temperature
- Humidity
- CO2
- Pressure
- etc...
Control Applications:
- Motors
- Pumps
- Fans
- Relays
- Door Strikes
- Lamps
- Alarms
- etc...
