Part #: BarioNet-50
Barix Part #: 2008.9091
The BarioNet-50 is a powerful IP enabled programmable controller with numerous I/O and communications interfaces onboard, resulting in a device that can monitor, control, and communicate with virtually anything. Included is a built-in Web Server that is completely customizable and allows for a unique user interface to be created for any application.
The BarioNet-50 can perform many standard monitoring and control functions as purchased off the shelf. If you require further capabilities, the unit can be completely customized and programmed to perform a multitude of applications.

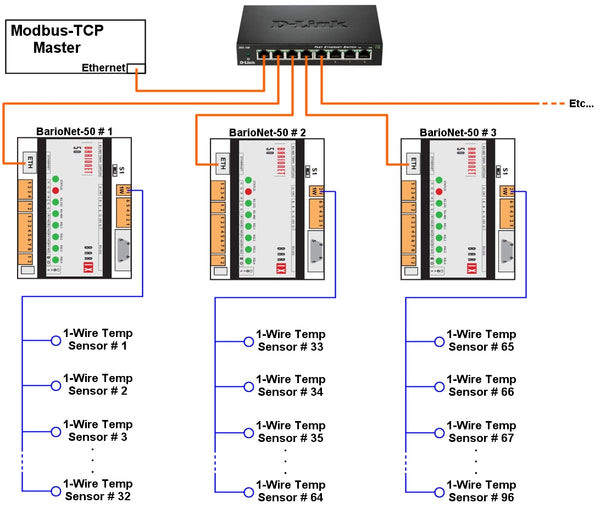

The base BarioNet-50 provides 4 digital inputs, 4 Relay Outputs (0.5A @ 30V), and a Dallas 1-wire interface that can support up to 50 1-wire temperature sensors. An RS232 and an RS485 interface are available for communication with any 3rd party serial device.
If additional I/O points are necessary, any remote modbus i/o device can be connected to the BarioNet via Modbus-RTU over RS485 or Modbus-TCP over IP. You can check out our other i/o devices if you need to provide additional Analog Outputs, Analog Inputs, Digital Outputs (sinking or sourcing), Digital Inputs, or Relay Outputs.
Applications:- Building Automation
- Energy Management
- HVAC Controls
- Remote Monitoring
- IP Enabled Security & Card Access
- Data Acquisition
- Industrial Automation
- Lighting Controls
- Event Alarming & Notification via Email, Cellphones, Pagers, Alarm Dialers, etc.
- Home Automation & Security
- Data Exchange between Foreign Systems
- more..
