Part #: 1WT_RM_FLSH_10cm_2w

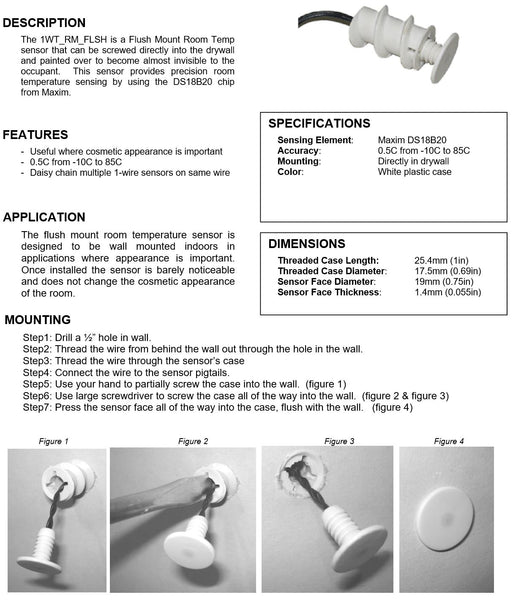

This Flush Mount 1-wire temperature sensor can be screwed directly into the drywall and painted over to become almost invisible to the occupant.
The face of the sensor has a diameter of 0.75".
The 1-wire sensor element used is a DS18B20 with 12-bit resolution.
Brown wire: VDD & GND
Blue Wire: DATA
Multiple sensors can be daisy chained on a single CAT5 network that can extend up to 200 meters or more in a typical environment. The sensors can receive data and power over the same CAT5 cable, which saves time and money during install.

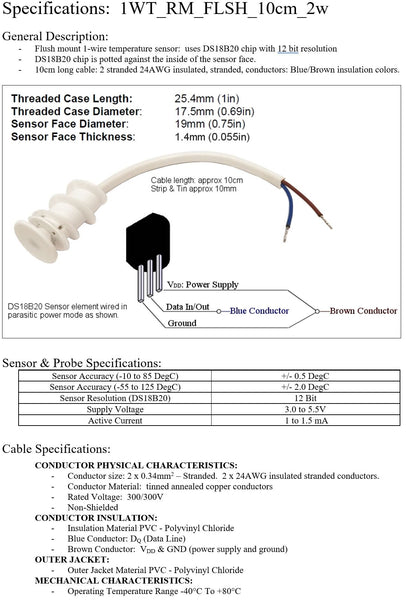

Specs:
+/- 0.5C over range of -10C to 85C
Cable is approx 4 inches long
Cable Operating Range of -40C to 80C
Sensor Operating Range of -40C to 85C
Digital Sensor (DS18B20) has 12bit Resolution
Sensor Accuracy (-10 to 85 DegC) +/- 0.5 DegC
Sensor Accuracy (-55 to 125 DegC) +/- 2.0 DegC
